Yaskawa Industrial Robots

GP215

1 /4

Yaskawa Industrial Robots

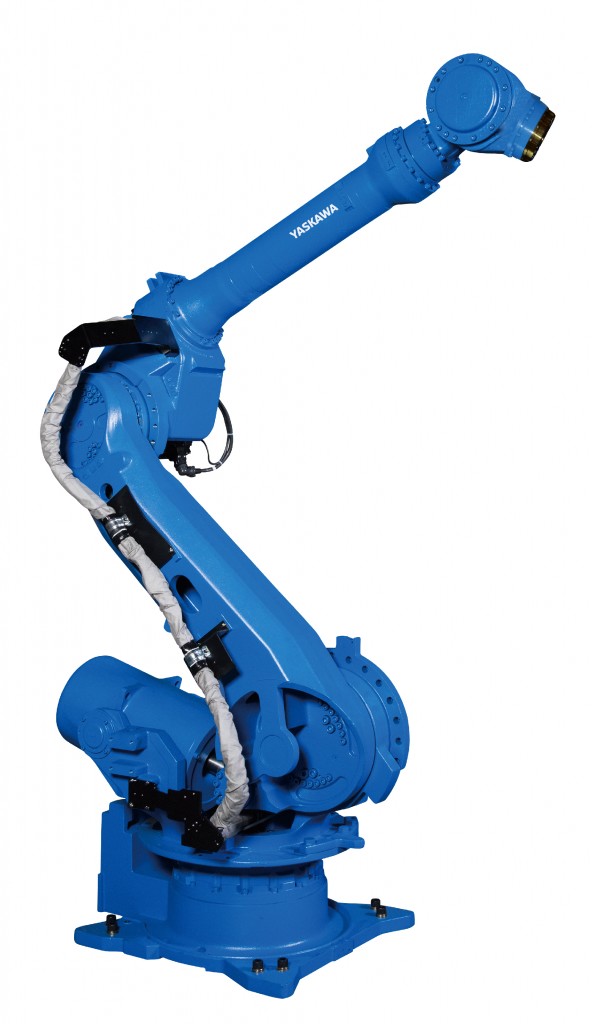

GP215

The GP215 handling robot provides a payload of 215 kg and a maximum reach of 2912 mm.

Fast, precise, efficient and robust, the six-axis GP215 robot enables increased productivity for a variety of applications such as heavy part processing, machine tending, material handling and press tending applications.





Downloads

Technical Data

  • Controlled Axes 6
  • Payload (kg) 215
  • Max. Working Range (mm) 2912
  • Repeatablility (mm) 0.2
  • Weight (kg) 1340
  • Power Requirements (kVA) 5
  • Mounting Positions Floor

Speed Table

Axis S L U R B T
º / sec 100º 90º 97º 120º 120º 190º

Typical application
