Yaskawa Industrial Robots

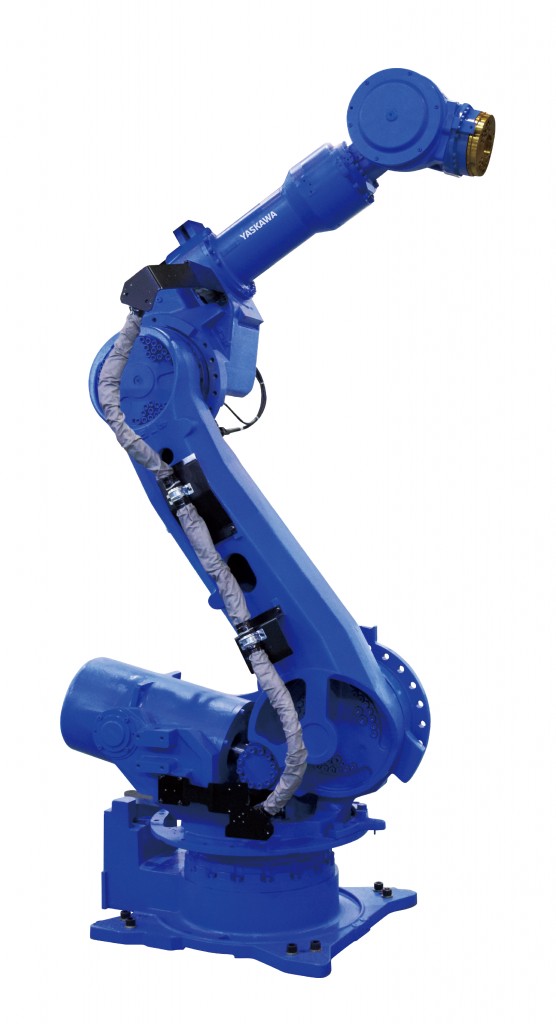

GP280

The GP280 handling robot provides a payload of 280 kg and a maximum reach of 2446 mm.

Ideal for heavy part processing, fast and precise, the six-axis GP250 robot enables increased productivity for a variety of applications such as machine tending, material handling and press tending applications.

Its streamlined upper arm with a slim wrist profile facilitates an easier reach into tight spaces, optimizing application flexibility.



Technical Data

  • Controlled Axes 6
  • Payload (kg) 280
  • Max Working Range (mm) 2446
  • Repeatablility (mm) ±0.05
  • Weight (kg) 1300
  • Power Requirements (kVA) 5
  • Mounting Positions Floor

Speed Table

Axis S L U R B T
º / sec 90º 80º 90º 115º 110º 190º

Typical application
